Containerized Generator Set Solutions
Integrated Power Solutions.
Jenbacher offers containerized generator sets based on our Type 2, 3, 4, and 6 gas engines. Leveraging the expertise acquired during several decades with more than 3,000 containerized units delivered, our genset containers offer optimal performance in various site conditions. By maintaining high-quality standards for both the engine and the complete containerized power plant package, we ensure excellent reliability for your power and heat generation needs.
Jenbacher containerized gas power generation solutions offer a variety of benefits to our customers, thanks to distinctive product features:
Product features |
Benefits of containerized power plants |
|
|
|
|
|
|
|
|
Tour of our 100% hydrogen Jenbacher container
See for yourself. Join Henning Liepelt, our Product Manager for containerized solutions, as he takes you on an exclusive tour of INNIO's pioneering Jenbacher containerized energy system, designed for 100% hydrogen operation. Get ready to step into the future of sustainable energy solutions!
Find out more about our hydrogen solution here.
Containerized solutions for Type 2, 3 and 4 (249 – 1562 kW)
Compact, easily transportable format
Our generator containers for Type 2, 3, and 4 gas engines have a standard 40-foot length. Width and height depend on engine type, the application (power generation only or CHP) and ambient conditions.
Customized sizes to accommodate special project requirements are available on request.
|
Type 2 and 3 |
Type 2, 3 and 4 |
Type 4 |
|
|---|---|---|---|
| Length |
12,192 mm |
12,192 mm |
12,192 mm |
| Width | 2,438 mm 8 ft |
~3,000 mm 10 ft |
~3,000 mm 10 ft |
| Height | 2,591 mm 8 ft 6 in |
2,591 – 2,700 mm 8 ft 6 in – 8 ft 10 in |
2,896 mm 9 ft 6 in |
Features and options
Sound attenuation
The overall package (gas engine, container, and auxiliary components) is designed to meet 65 dB(A) in 10m (surface sound pressure level according to DIN 45635). Lower sound pressure levels are available on request.
Ambient temperature
The standard ventilation is designed for ambient temperatures from -25°C to +34°C.
All genset containers are also available with an option for -40°C and most variants can be upgraded for +45°C.
Options
A broad range of options, both mechanical and electrical, are available to ensure that our containers meet the project requirements. For example, we offer several heat recovery configurations and exhaust after treatment systems. Our containers can be designed to meet different country-specific regulations, earthquake safety requirements and various ambient conditions.
Experience our webinar to learn more about Jenbacher's CHP solutions
Jenbacher North American team invites you to review the recording of our recent webinar, to learn how Jenbacher can help you develop your power plant projects, including equipment design and performance, using hydrogen and much more!
In the webinar, you will learn more about:
-
Overview of an independent power plant and its components
-
Jenbacher’s highly efficient type 6 genset
-
Our hydrogen power generation solutions
-
How proven equipment design improves performance
-
Power generation solutions with quick delivery and easy installation
The information provided is relevant for the North American market. Please reach out to our experts to discuss your project.

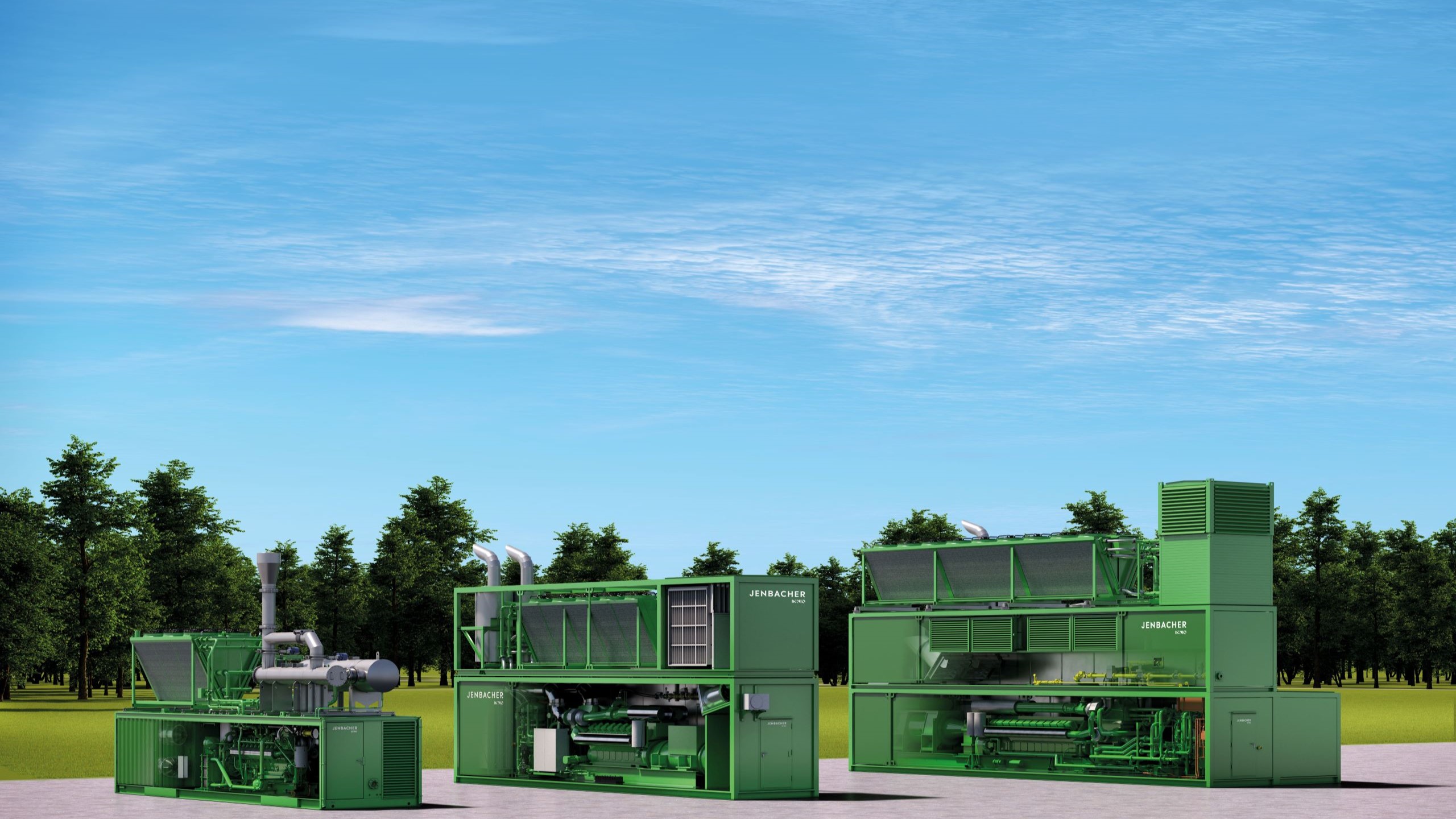

Containerized solutions for Type 6 (1634 – 4507 kW)
Pre-assembled modules
Our Type 6 generator containers consist of two or three pre-assembled modules, depending on the engine type and the application.
|
Engine Type |
Application |
|
|---|---|---|
|
2-Container Layout |
J612 -GS, J616 -GS, J620 -GS | Power Generation |
|
3-Container Layout |
J624 -GS | Power Generation |
| J612 -GS, J616 -GS, J620 -GS, J624 -GS | Heat & Power Generation |
|
Length |
Width |
Height |
|
|---|---|---|---|
|
2-Container Layout |
13,500 – 20,500 mm ~44 ft – 67 ft |
3,000 – 4,000 mm ~10 ft – 13 ft |
~7,500 mm ~25 ft |
|
3-Container Layout |
|||
| 12,000 – 19,500 mm ~41 ft – 64 ft |
6,000 mm ~20 ft |
~7,500 mm ~25 ft |
*Main unit dimensions without roof-mounted equipment
Features and options
Sound attenuation
The overall package (gas engine, container, and auxiliary components) is available for 65, 70, 75 and 80 dB(A) in 10m (surface sound pressure level according to DIN 45635). Lower sound pressure levels are available on request.
Ambient temperature
The standard ventilation is designed for ambient temperatures from -25°C to +40°C. The genset containers can be equipped with several additional features to enable operation at lower temperatures on request.
Options
Type 6 containers are available with a similarly broad range of options that we offer for the Type 2 / 3 / 4 containers. These include several heat recovery configurations, exhaust after treatment systems, compliance with country-specific regulations, earthquake safety requirements and various ambient conditions. Additionally, several Type 6—specific options are available, such as the integration of pre-chamber gas compressors and medium voltage equipment.
